IP66 Waterproof 100volt - 240V AC 40W LED Street Lighting , 2700k - 6500k LED Street Light

Product Categories
Shenzhen Leyond Lighting Co.,Ltd.
Contact Now

IP66 Waterproof 100volt - 240V AC 40W LED Street Lighting , 2700k - 6500k LED Street Light

Brand Name : Leyond

Model Number : LY-ST10040XX

Certification : CE,ROHS,ISO9001:2008

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union or Paypal

Supply Ability : 8000pcs/month

Delivery Time : 7-15 working days

Packaging Details : Carton box package

Power : 40W

Driver : Meanwell driver

Power factor : >=0.95

Power efficiency : 85%

Beam Angle : 150*65

Operational condition : Temperature: -40 -- +60; Humidity: 10%-90%RH

Warranty : 5 years

Contact Now

IP66 Waterproof 100volt - 240V AC 40W LED Street Lighting , 2700k - 6500k LED Street Light

Features:

  • Absolutely unique mold,make your lighting special and fantastic.
  • Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
  • Anti-glare and uniform light level to avoid any visual discomfort.
  • high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
  • Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
  • Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.
  • Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
  • Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
  • Green environmental protection, no UV light and infrared radiation, no mercury pollution.
  • Nice appearance and non-fouling properties, Protection class IP66.
  • Work without strobe, fast transient response；A wide range of working voltage.

Specification:

Par NO

Parameter

LY-ST10040PW

LY- ST10040WW

LY- ST10040NW
Inptut voltage AC100V～240V 50/60HZ / DC12-24V
Sysem consumption(W) 40 40 40
Luminous flux(lm) 6600 6200 6450
Chip Brand Lumileds 5050 Lumileds 5050 Lumileds 5050
Beam Angle 150*65 DEG 150*65 DEG 150*65 DEG
CRI ＞75
Color Temperature Warm white:3000K / Neutral white:4000K / Pure white:5000K / Cool white: 5700K
LED Driver MEAN WELL HLG-40H
Luminous efficiency(lm/w) ＞165
Lifespan(hrs) ＞50000
IP Rating IP67
Dimmable YES＆NO YES＆NO YES＆NO
Size(mm) 410x200x90 410x200x90 410x200x90
Net Weigh(kg) 2.8 2.8 2.8
Package Size(mm) 465*255*145 465*255*145 465*255*145
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 3.3 3.3 3.3

Distribution Curve:(30w)

IP66 Waterproof 100volt - 240V AC 40W LED Street Lighting , 2700k - 6500k LED Street Light

package:

Inner box Size: 465mm×255mm×145mm

Outer box Size: 580mm×485mm×310mm

IP66 Waterproof 100volt - 240V AC 40W LED Street Lighting , 2700k - 6500k LED Street Light

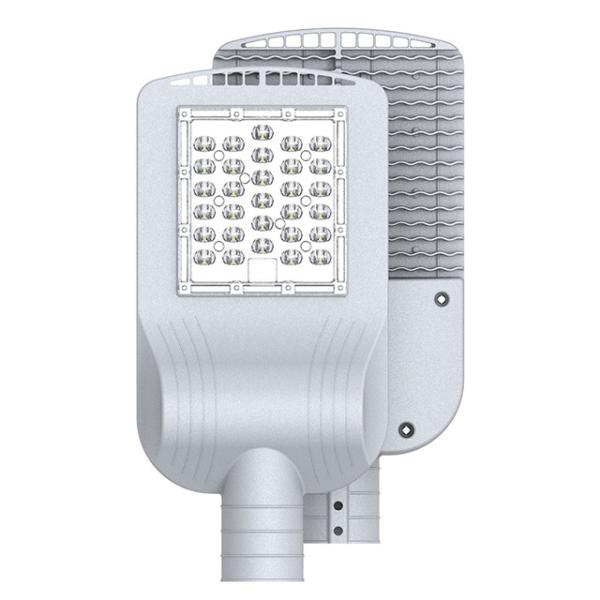

Product Image:

IP66 Waterproof 100volt - 240V AC 40W LED Street Lighting , 2700k - 6500k LED Street LightIP66 Waterproof 100volt - 240V AC 40W LED Street Lighting , 2700k - 6500k LED Street LightIP66 Waterproof 100volt - 240V AC 40W LED Street Lighting , 2700k - 6500k LED Street LightIP66 Waterproof 100volt - 240V AC 40W LED Street Lighting , 2700k - 6500k LED Street Light

Assembly and Installation:

IP66 Waterproof 100volt - 240V AC 40W LED Street Lighting , 2700k - 6500k LED Street Light

Operation and Storage Condition
l Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
l Input Voltage 100~240V AC, 50/60Hz
l Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
l Mounting Height : Suitable for 3~8m height
