20W-50W Integrated All In One Solar LED Street Lights 160LM/W IP66 Waterproof

Shenzhen Leyond Lighting Co.,Ltd.
Contact Now

20W-50W Integrated All In One Solar LED Street Lights 160LM/W IP66 Waterproof

Brand Name : Leyond

Model Number : LY-ST30020XX, LY-ST30030XX, LY-ST30040XX, LY-ST30050XX

Certification : CE, ROHS, EMEC, C-tick

Place of Origin : China

MOQ : 1

Price : Negotiate

Payment Terms : T/T, Western Union, L/C

Supply Ability : 2000 pics/ week

Delivery Time : 5-8 work days

Packaging Details : Carton

Product name : 20W-50W Solar LED Street Lights

Lamp luminous flux(lm) : 8000lm

Input voltage(v) : 12V

Cri (ra>) : 80

Item type : Solar LED Street Lights

Working lifetime(hour) : 50000hrs

Warranty(year) : 3 Years Warranty

Application : Roadway Lighting, Packing Lighting, Pathway Lighting, Street Lighting

Lamp body material : Die Cast Aluminum Housing

Lamp luminous efficiency(lm/w) : 160lm/w

Led light source : Luxeon 5050

Ip rating : IP66

Color temperature(cct) : Warm White: 2700-3200K, Neutral White: 4000-4500K, Cold White:5000-6500K

Solar panel : 20W-50W /18V Monocrystalline Silicon

Power : 20W, 30W, 40W, 50W

Control Mode : Light Control+ Motion Sensor

Operating Time : Full Power>12 Hrs, Intelligent Mode 3-4 days

Privated Design : Laser Logo

Battery : 18650 Lithium Battery 12V 30Ah/50Ah

Contact Now

20W-50W Integrated All In One Solar LED Street Lights 160LM/W IP66 Waterproof

Product Features:

1. 1000 cycle 18650 Lithiun battery, 5 years spen life.
2. Working Mode, full power>12 hours, intelligent mode 4-5 days
3. Specific design for high way and government project,install high up to 13M.
4. Mono-crystalline solar panel 25 years spen life
5. Customized motion sensor, sensing distance reach to 8M.
6. All in one design with patent, Die Cast Aluminum alloy ,Waterproof IP66.
7. Turn on at dusk and tun off at dawn automatically.

8. Time control + light sensor control+ motion sensor control

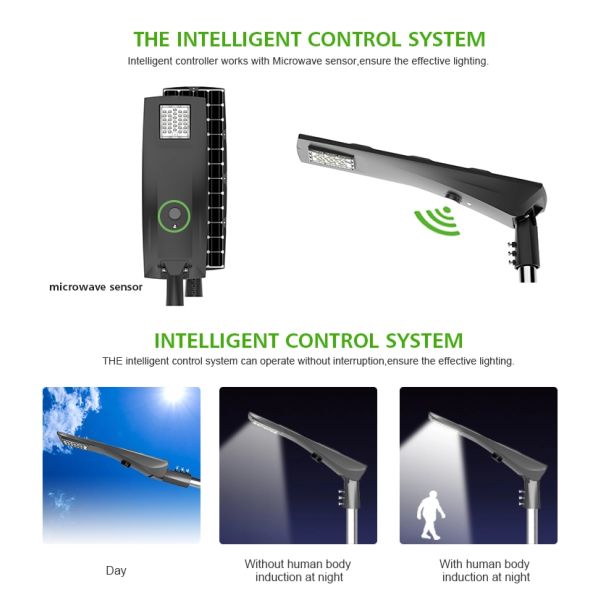

9. Motion and light sensor built in:solar street light goes on at dusk at 20% brightness(Brightness adjustable).

Can go from 20% power to full brightness when motion is detected. Three Intelligent Modes: Bright / DIM / Recharge.

(1)Bright: motion activates for lighting when motion is detected for security light and to save battery;

(2)DIM: 20% lighting for saving power when no motion(Brightness adjustable);

(3)Off/Recharge: automatically turns off in daylight and goes into recharge mode. (working mode can be adjusted according to client's demands).

10. Remote control the lighting mode, OEM, ODM is available.

11. AC/DC Hybrid Solar Power System Available ( need customization)

Product Specifications:

Part NO.

Parameter

LY-ST30020XX LY-ST30030XX LY-ST30040XX LY-ST30050XX
Power 20W 30W 40W 50W
Luminous flux(lm) 3200 4800 6400 8000
Beam angle 150*70° 150*70° 150*70° 150*70°
Pole Diameter 60mm 60mm 60mm 60mm
Chip Brand Luxeon 5050 Luxeon 5050 Luxeon 5050 Luxeon 5050
Solar Panel 30W/18V Monocrystalline Silicon 30W/18V Monocrystalline Silicon 50W/18V Monocrystalline Silicon 50W/18V Monocrystalline Silicon
Battery 18650 Lithium battery 12V 20Ah 18650 Lithium battery 12V 30Ah 18650 Lithium battery 12V 40Ah 18650Lithium battery 12V 50Ah
CRI >70
Color Temperature Warm White: 2700K-3200K/ Neutral White: 4000-4500K/ Pure White: 5000K-6500K
Operating Time Full Power>12 hours, Intelligent mode 4-5 days
Control mode Light Control + Motion Sensor
Material Die Cast Aluminum
IP Rating IP65/ IP66
Installtion Height 4-8m or higher

Product Picture

20W-50W Integrated All In One Solar LED Street Lights 160LM/W IP66 Waterproof

20W-50W Integrated All In One Solar LED Street Lights 160LM/W IP66 Waterproof

20W-50W Integrated All In One Solar LED Street Lights 160LM/W IP66 Waterproof

FAQ

* What LED chip is used? Luxeon 5050 chips
* What type of solar cell is used? 18650 Lithium Battery
* What is the warranty period? In general can work 5 years and We support 3 years warranty
