IP66 Outdoor Waterproof High Power LED Street Lighting Meanwell Driver Die-casting Housing
01.Specification of Led Street Light
| Input Voltage | AC100-305V 50/60HZ |
| System Consumption(w) | 150 | 150 | 150 |
| Luminous Flux(lm) | 25125 | 22500 | 24094 |
| Chip Brand | Luxeon5050/Leyond5050 | Luxeon5050/Leyond5050 | Luxeon5050/Leyond5050 |
| Color Temperature | PW 5000-6500K | WW 2700-3200K | NW 4000-4500K |
| CRI | >70 |
| Beam Angle | 150*60 DEG |
| LED Driver | MEANWELL XLG-200 |
| Luminous Efficiency(lm/w) | >160 |
| Lifespan(hrs) | >50000 |
| IP Rating | IP66 |
| Dimmable | YES&NO | YES&NO | YES&NO |
| Size(mm) | 394*220*128 | 394*220*128 | 394*220*128 |
| Net Weight(kg) | 3.6 | 3.6 | 3.6 |
| Package Size(mm) | 430*250*180 | 430*250*180 | 430*250*180 |
02. Feature Of Led Street Lamp
1.Absolutely unique mold, make your lighting special and fantastic.
2.The appearance of body:aluminum alloy die-casting
3.Pefect Light Distribion solution: Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
4. Anti-glare and uniform light leve to avoid any visual discomfort.
5.Adopting LUXEON 5050 led ligh surces and Leyond Lens technology, higher light transmittance up to 93%.
6.The Power supply is designed to be portable and easy to construct and maintain. Easy to disassemble and assemble You can easily open and cover up the housing with your hands,don't need any additional tools.
7.Dust and snow proof,Adopt smooth die-cast aluminum housing successfully prevent the dust and snow from acumulating on the housing,thus better heat dissipation and longer life span.
8.High quality power supply, input voltage 100-305V, The Power efficiency is more than 90%,Power factor greater than 0.98.
9.Durable lights with long life span up to 50000 hours, No need frequent replacements of lights and regular maintenance.
10.Green environmental protection,no UV light and infrared radiation.no mercury pollution.
11.Nice appearance and non-fouling properties, Protection class IP66.

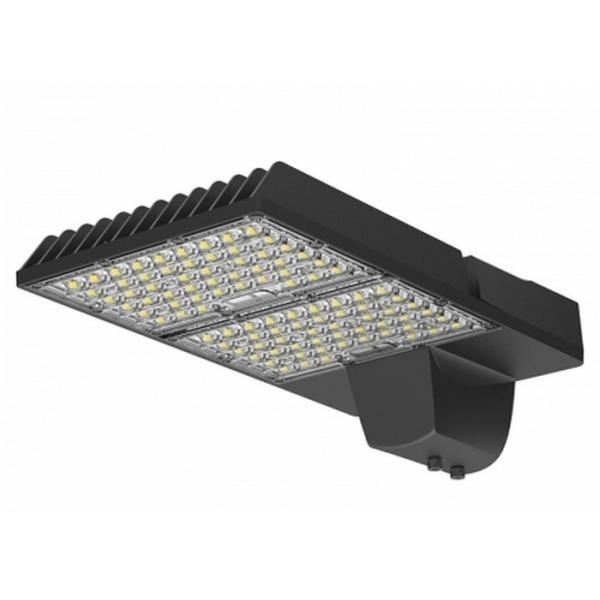

03. Product Pictures of Outdoor Led Street Lights
04. Dimesion of High Power Led Street Light
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. Fordefective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
